Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
-
Resaltar
800mm Digital Thickness Tester
,Electronic Dial Thickness Gauge 25.4mm
-
GarantíaUn año
-
MediciónMétrica/pulgada
-
MaterialAcero inoxidable
-
Cara de mediciónEsférica
-
Rango0-25.4 mm/0-1 ″
-
Resolución0Se aplicarán las siguientes medidas:
-
Profundidad de la garganta800 mm
-
SolicitudMida el grosor de papel, cuero, goma
-
Característicacon un mango de agarre conveniente
-
Medición de carasSonda plana o de pelota
-
PaqueteEstuche de madera
-
Lugar de origenShaanxi, China
-
Nombre de la marcaKM
-
CertificaciónISO DIN GB RoHS
-
Número de modeloKM-424-110
-
Detalles de empaquetadoEstuche de madera 82*31*5cm/pieza 3.80 kg/pieza
-
Tiempo de entregaDentro de los 15 días
-
Condiciones de pagoT/T, L/C, D/P, D/A, Western Union, PayPal, Moneygram
-
Capacidad de la fuente50000 piezas/mes
Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
This digital thickness gauge is a precision measuring tool designed for accurate thickness measurement of various materials including paper, plastic, rubber, and metal. Featuring a clear digital display, it eliminates manual reading errors and supports easy conversion between metric and imperial units.
Key Features

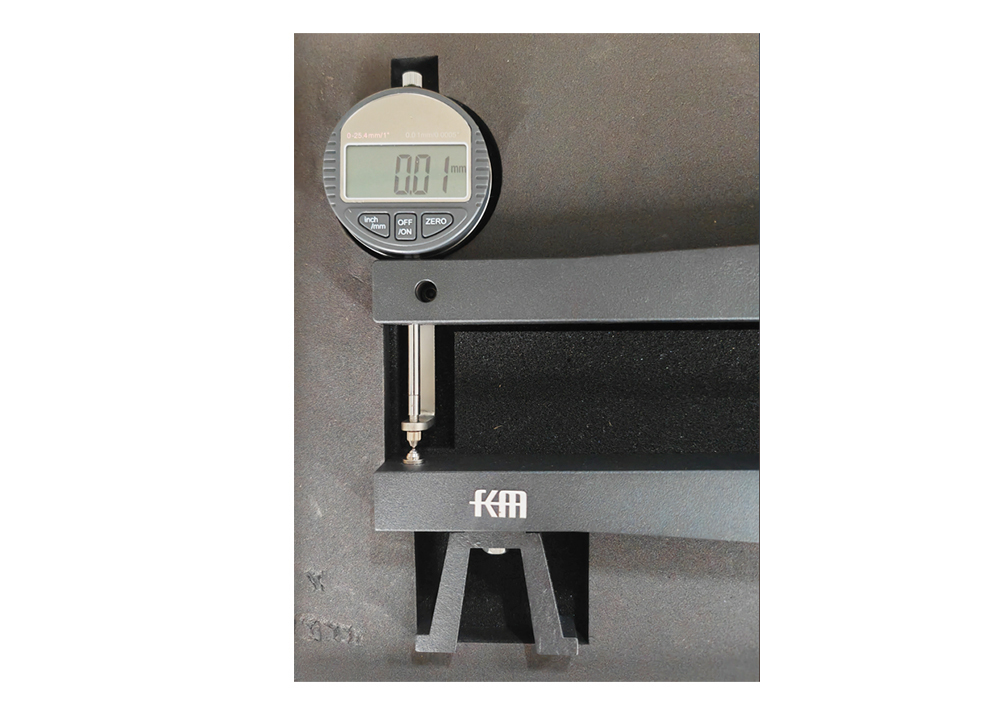

- Large LCD display for easy reading
- Zero-setting capability at any position
- Inch/Metric unit conversion
- Convenient power ON/OFF function
- Ergonomic grip handle for quick measurements
- Lifting lever for dial indicator
- Multiple measuring face options for diverse applications
- Choice of steel or ceramic measuring faces
- Customizable measuring depth available

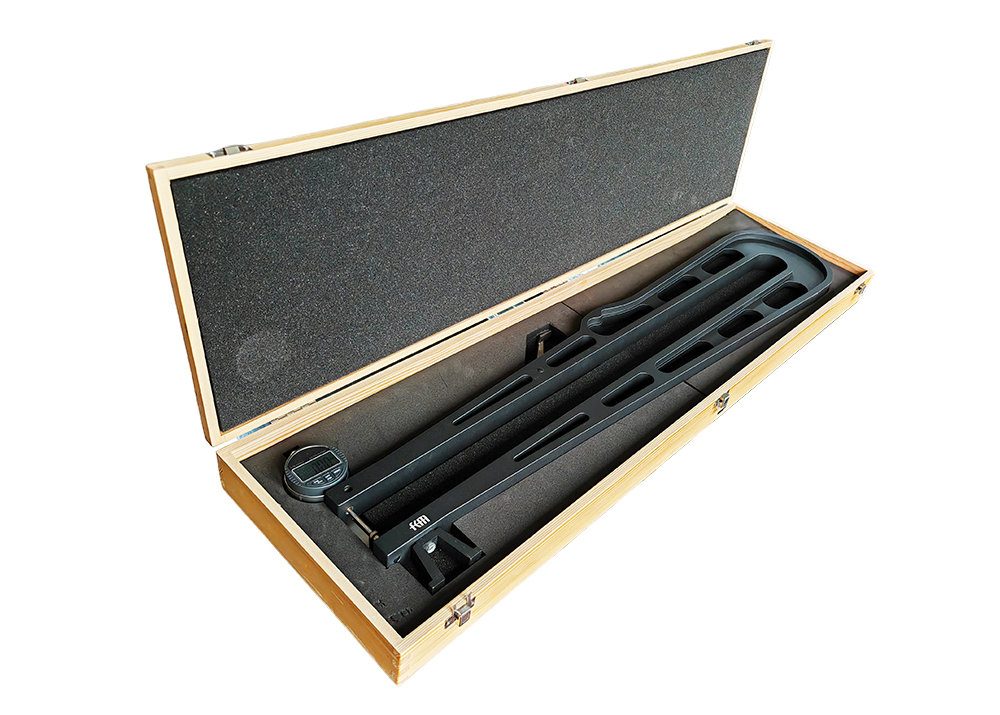

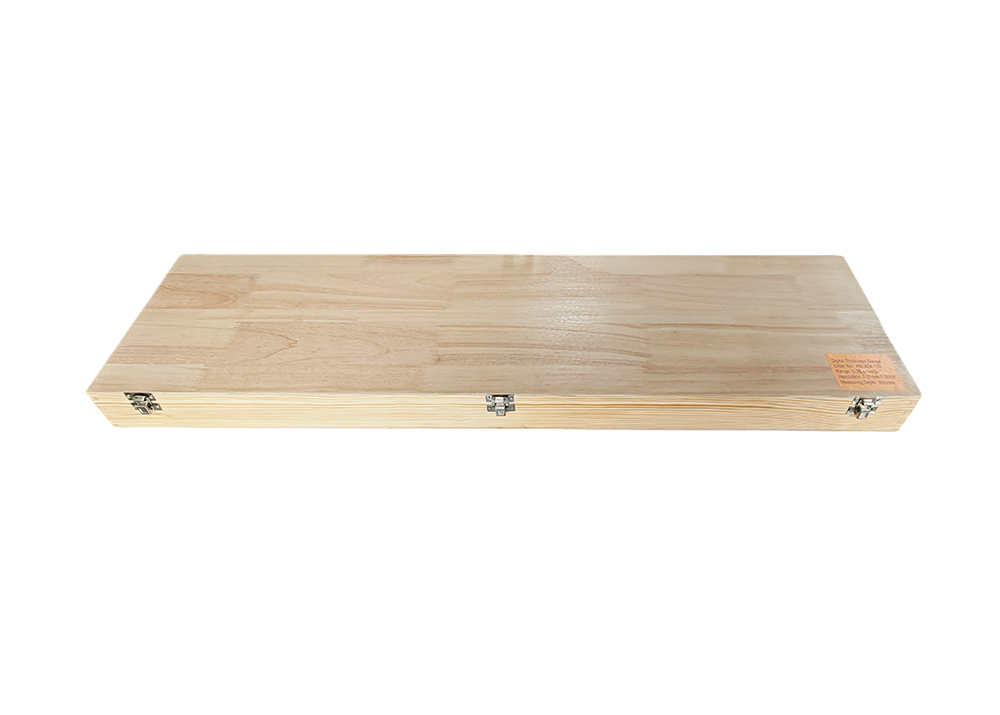

- Includes protective fitted case
Technical Specifications
| Order No. | Measuring Range | Resolution | Measuring Depth |
|---|---|---|---|
| KM-424-001 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 30mm |
| KM-424-002 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 60mm |
| KM-424-003 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 120mm |
| KM-424-004 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 200mm |
| KM-424-005 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 300mm |
| KM-424-006 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 400mm |
| KM-424-007 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 500mm |
| KM-424-101 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 30mm |
| KM-424-102 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 60mm |
| KM-424-103 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 120mm |
| KM-424-104 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 200mm |
| KM-424-105 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 300mm |
| KM-424-106 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 400mm |
| KM-424-107 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 500mm |
| KM-424-201 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 30mm |
| KM-424-202 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 60mm |
| KM-424-203 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 120mm |
| KM-424-204 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 200mm |
| KM-424-205 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 300mm |
| KM-424-206 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 400mm |
| KM-424-207 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 500mm |
Industry Applications
- Iron and steel industry: Measuring thickness of metal sheets for ships, bridges, and oil tanks
- Chemical industry: Measuring wall thickness of containers and pipelines
- Manufacturing: Measuring plastic products, paper, leather, rubber, fabric, and glass
- Aerospace: Measuring thickness of aircraft and engine components
- Automotive industry: Measuring thickness of body panels and brake discs
Usage Precautions
- Handle with care to prevent impacts or drops that may affect accuracy
- Keep the gauge clean and protected from liquids
- Do not remove output port cover when not in use
- Avoid contact with metal devices on output terminals
- Never apply voltage to any part of the thickness gauge
- Remove batteries during long-term storage
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
