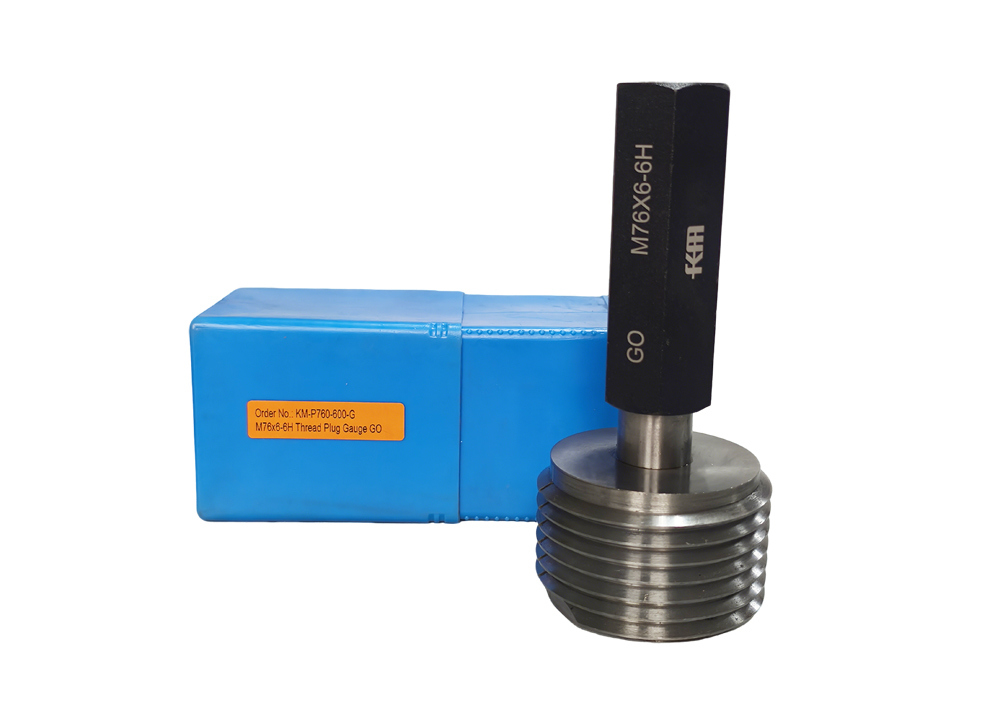

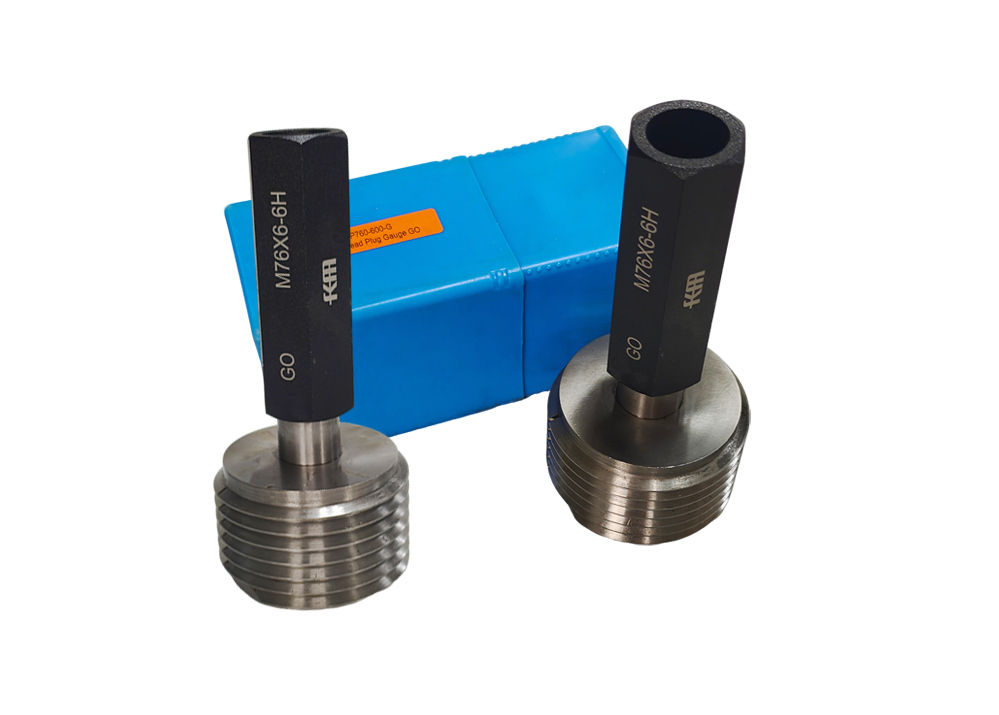

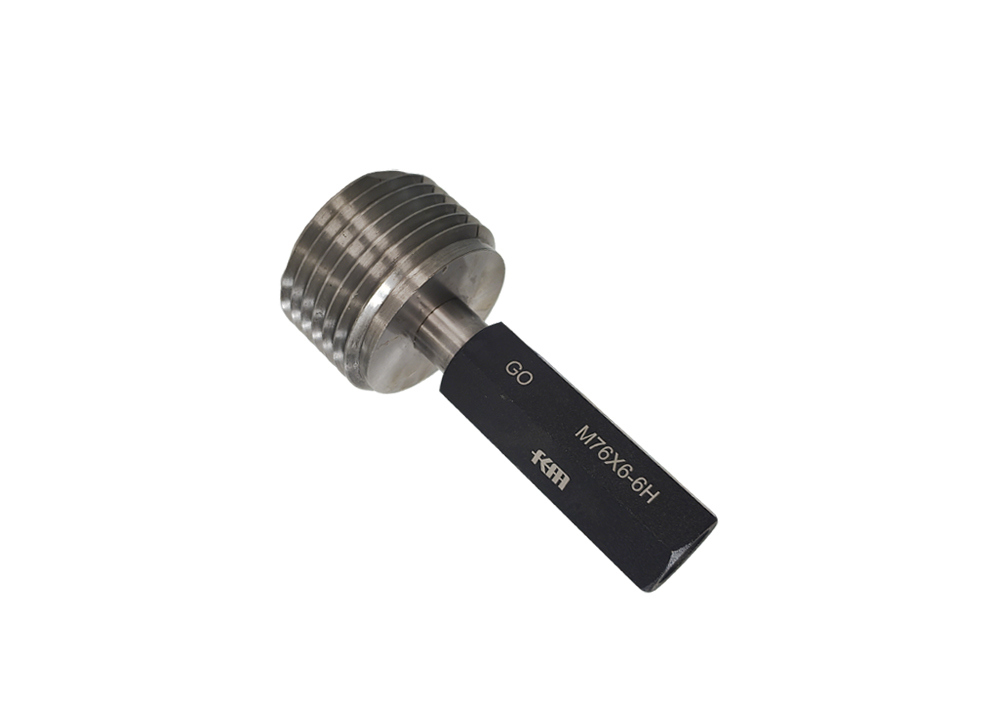

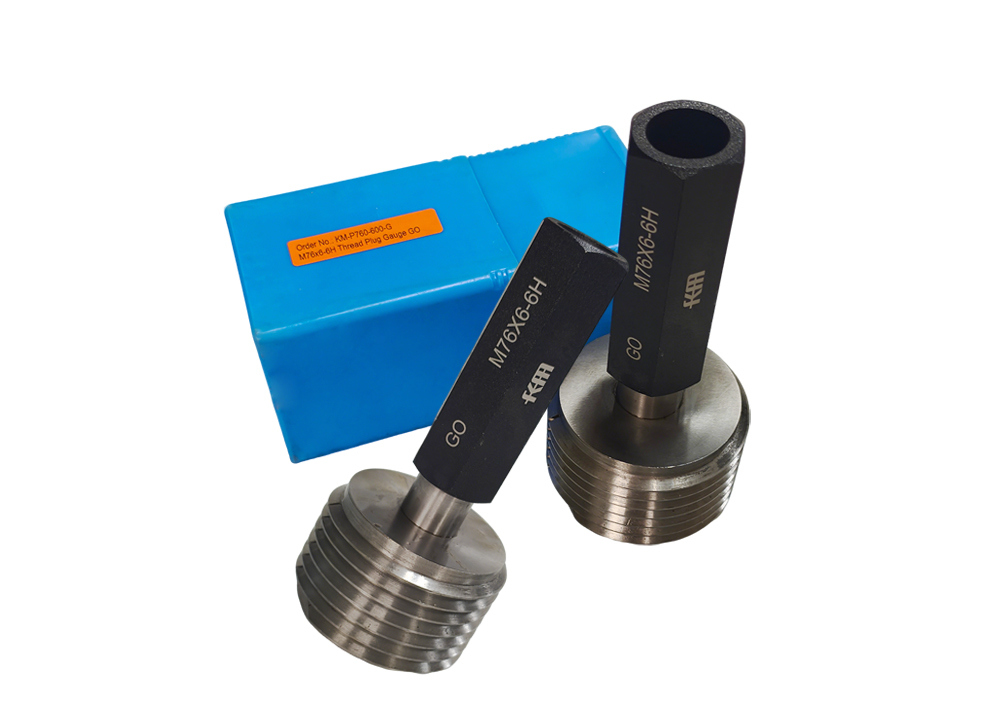

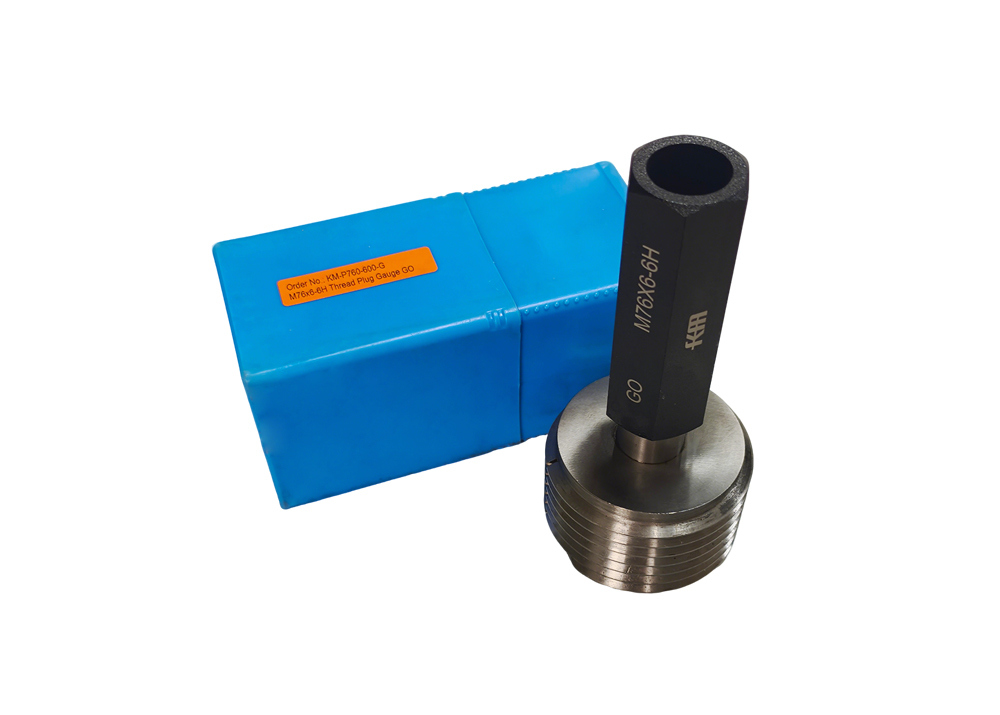

GO Type M76X6-6H Metric Thread Plug Gauge with Calibration Certificate Included
-
Resaltar
M76X6-6H Metric Thread Plug Gauge
,Calibration Certificate Metric Thread Plug Gauge
-
GarantíaUn año
-
TipoCalibre de tapón de rosca métrica
-
MaterialAcero para herramientas
-
Cumplir con el estándarDIN13
-
Especificación del hiloM76x6-6H IR
-
Exactitud5g, 5h, 6g, 6h, 7g, 7h, etc.
-
Usopara trabajo e inspección
-
Objeto de mediciónVerifique los orificios roscados o roscados, etc.
-
PaqueteCaja ABS
-
Lugar de origenShaanxi, China
-
Nombre de la marcaKM
-
CertificaciónISO DIN GB RoHS
-
Número de modeloKM-P760-600
-
Detalles de empaquetadoCaja de ABS 15*4,5*4,5 cm/pieza 0,36 kg/pieza
-
Tiempo de entregaDentro de los 15 días
-
Condiciones de pagoT/T, L/C, D/P, D/A, Western Union, PayPal, Moneygram
-
Capacidad de la fuente50000 piezas/mes
GO Type M76X6-6H Metric Thread Plug Gauge with Calibration Certificate Included
GO Type M76X6-6H Metric Thread Plug Gauge with Calibration Certificate Included
These metric plug ring gauges are precision metrology tools designed for checking threaded or tapped holes. They verify proper thread type, major diameter, minor diameter, pitch diameter, and pitch against mating thread gauges.
Our facility features first-grade thread machining centers and measuring equipment to provide high-precision thread ring gauges worldwide. Plug gauges offer rapid results with simple operation principles that require minimal training.
For small threaded parts, gauges are double-ended with GO and NOGO sections. Larger parts use separate pieces. Acceptance criteria: the GO gauge must pass through the entire nut length with minimal rotational force, while the NOGO gauge should enter no more than 2 turns at either end.
Available Types
- GO thread plug gauges
- NOGO thread plug gauges
- Combination GO/NOGO thread plug gauges
Quick Details
- Metric thread plug gauge
- Accuracy: 5g,5h, 6g,6h,7g,7h, etc.
- GO, NOGO, and combination types available
- Conforms to DIN13 standard
- Wear/corrosion resistant with stable structure
- Includes fitted case
Specifications
| Order No. | Size | Coarse | Fine | Accuracy | ||||
| Pitch 1 | Pitch 2 | Pitch 3 | Pitch 4 | Pitch 5 | Pitch 6 | |||
| KM-P180 | M18.0 | 2.50 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 |
4h 4h5h 5g 5h 5h6h 6g 6h 7g 7h |
| …… | …… | …… | …… | …… | …… | …… | ||
| KM-P320 | M320 | |||||||
Applications
These thread plug gauges are essential for inspecting thread dimensions across industries including automotive manufacturing, aerospace, machining, and electronic processing. They ensure thread accuracy and improve product qualification rates.
Precautions
- Avoid touching working surfaces to prevent rust
- Store properly on tool cabinets or wooden backing plates - never on machine tool holders or guide rails
- Regularly inspect for damage, rust, or deformation
- Treat rust with gasoline soak and anti-rust oil application
- Never store working surfaces together to prevent adhesion
- Clean and dry thoroughly after each use
